形状 3D (変形)

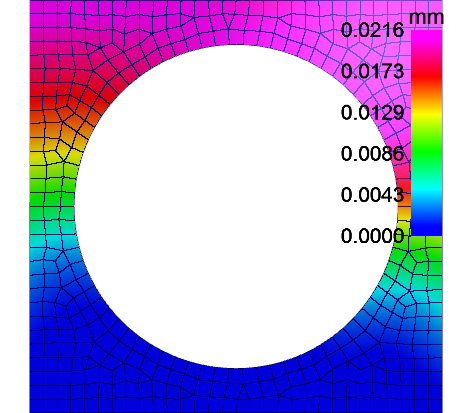

The 3D geometry of the 3D-elastic parts is is shown with deformations as color scale. The graphic is also available with deformation components in X, Y, Z-directions or normal to the surface.
